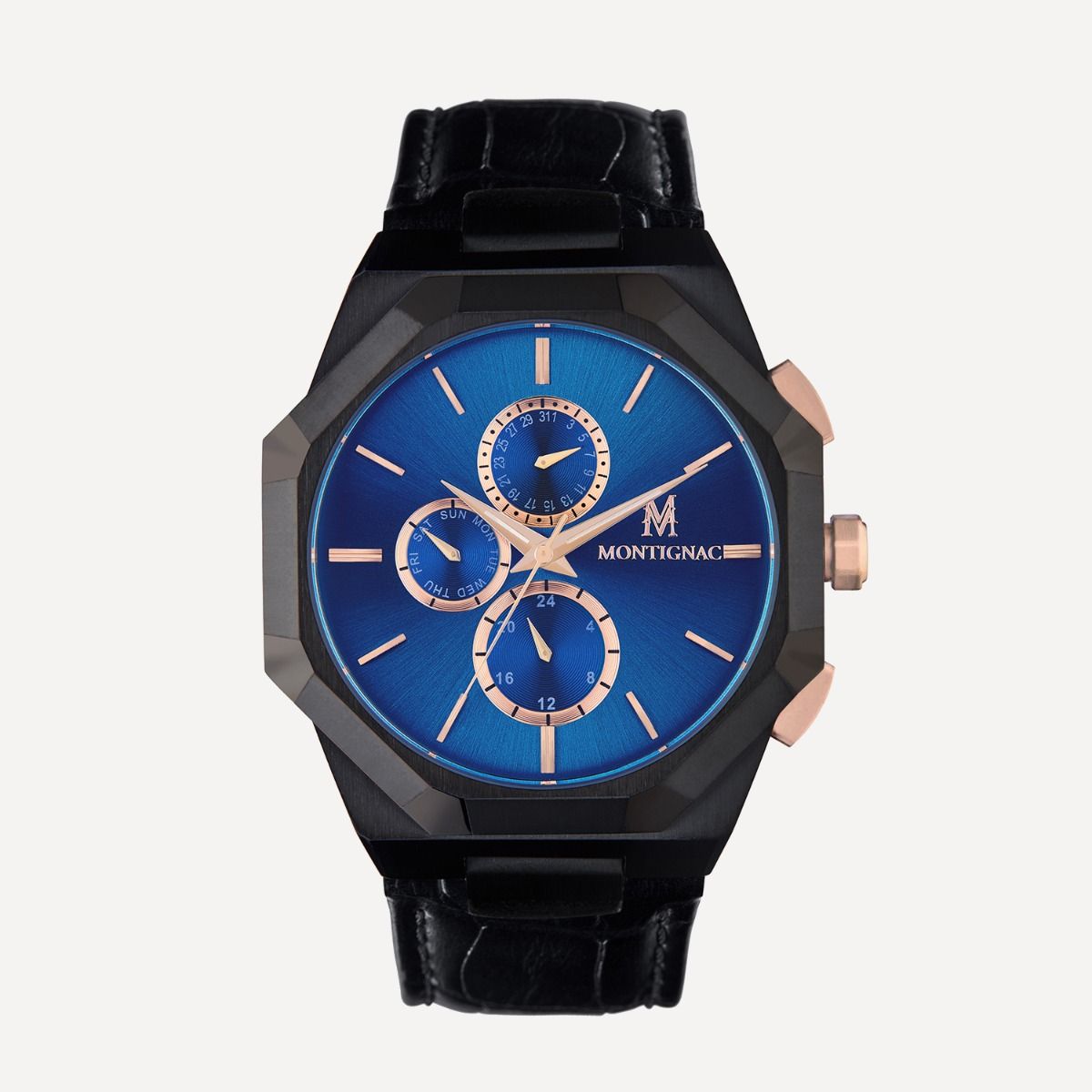

MOPE19B19

MIYOTA 6P27 – Multi-function Movement

Functions: 3 hands (hours, minutes, seconds), date, day of the week, 24-hour

Movement: quartz

Battery life: approximately 3 years

Display:

Crown operation :

To set the day and time:

(1) Pull the crown out to position 2.

(2) Turn the hour and minute hands clockwise to set the day. Advance the hour hand by 24 hours to move forward by one day.

*Do not set the day by turning the crown counterclockwise, as the day will not change.
*The day changes between midnight and 5:30 a.m., or slightly later.

(3) Turn the crown to set the time.

*The 24-hour hand moves in conjunction with the hour hand.
*When setting the hour hand, check that the 24-hour hand is set correctly.
*When setting the minute hand, advance it 4 to 5 minutes beyond the desired time, then move it back to the exact time.
*When setting the hour and minute hands, make sure the AM/PM setting is correct.

(4) Once the time is set, push the crown back to position 0.

To set the date:

(1) Pull the crown out to position 1.

(2) Turn the crown counterclockwise to set the date.

(3) Once the date is set, push the crown back to position 0.

*Do not set the date between 9:00 p.m. and 1:00 a.m., otherwise, the date may not change correctly.
*The date hand will not move backwards when the crown is turned clockwise.
