MOW705

EPSON VX9N – Multifunction Movement

Functions: 3 hands (hours, minutes, seconds), date, day of the week, 24-hour, pusher

Movement: quartz

Battery life: approximately 3 years

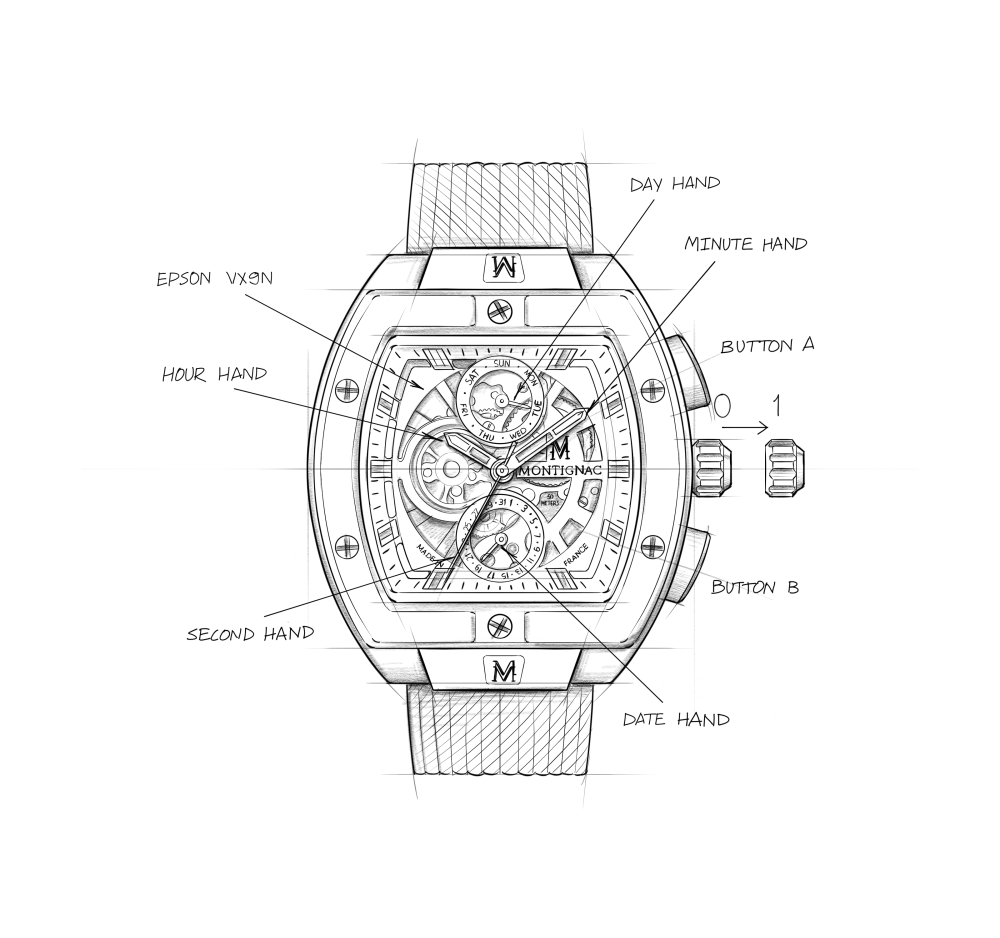

Display:

Crown dans button operation :

How to set time:
(1)    Pull the crown out to position 1 when the second hand is at the 12 o’clock position.
(2)    Turn the crown to set the hour and minute hands.
*The 24-hour hand moves correspondingly with the hour hand.
*When setting the hour hand, check that the 24-hour hand is correctly set.
*When setting the minute hand, advance it 4 or 5 minutes ahead of the desired time and then turn it back to the exact time.
*When setting the hour & minute hands, take AM/PM into consideration.
(3)    Once the time is set, push the crown back to position 0.

How to set date and day of the week:
•    Day correction: with each pressing of the button A, the day hand advances to the next day of the week.
•    Date correction: with each pressing of the button B, the date hand advances 1 day.
*Do not set the date and the day hands between 9pm and 1am. Otherwise, they may not change properly.
